Sustainable façade cladding with DOGLA-TRIO 1010

Over 61 million passengers per year use GO Transit train and bus services. GO Transit is the extensive public transit system located in the Greater Toronto Area. GO Transit spans over 11,000 square kilometers, linking Toronto to regions as far as Hamilton, Waterloo, Barrie, Peterborough, and Niagara Falls.



A Car Park for the Environment

Adding more parking options at the GO Transit stations encourages people to use transit, which reduces congestion on the roads and helps the environment.

In March 2010, a new parking facility was added to the Go Aurora station, located on Wellington Street in Aurora, Ontario, Canada.

It is a five-level parking structure with 866 new parking spots. Aurora GO Transit passengers now have access to more than 1,700 parking spots at the station.

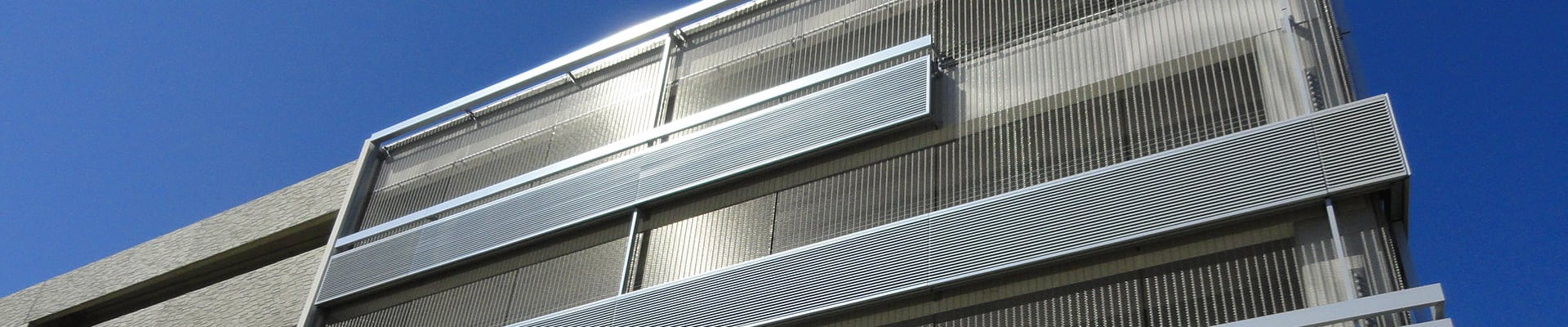

Wire Mesh Façade

Three sides of the building façade are cladded with DOGLA-TRIO 1010 by W.S. Tyler Canada.

In total, more than 1,300 m² of wire mesh type DOGLA-TRIO were installed. The open area of approximately 72% ensures not only the required ventilation, but also creates exceptional light reflections, giving a unique appearance of high value to the building.

Besides the function of ventilation and the optical enhancement, the wire mesh façade has yet another function; it provides fall protection for the occupants of the parkade.

The standard mesh elements have a height of 13.0 m and a width of 2.6 m and were supplied by W.S. Tyler Canada ready for installation, complete with tensioning devices, which consist of flat tension profiles, clevis screws, and pressure springs.
